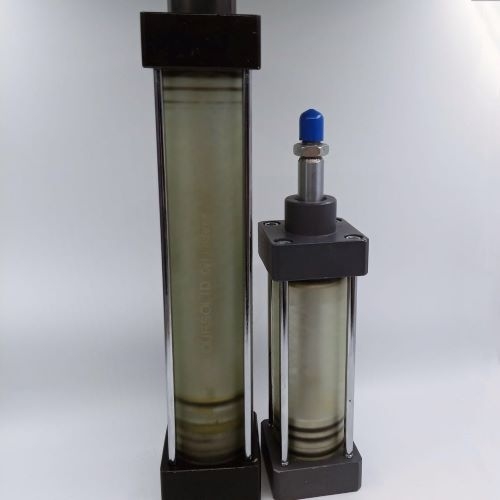

FRP Tube Sizes

1: Winding angle, 45°~65° (winding angle can be adjusted according to different requirements to achieve better mechanical properties);

2: Fiber content (weight ratio), 70% to 75%;

3: Density, 2.00g/cm³;

4: Water absorption, less than 0.03%;

5: Axial thermal expansion coefficient, 1.8E-05 1/K;

6: Glass transition temperature, 110~120℃;

7: Chemical resistance Mineral oil: excellent;

8: Solvent and dilute acid: excellent;

9: Tensile elastic modulus, axial 14000 MPa;

10: Tensile strength: 280 MPa in the axial direction; 600 MPa in the circumferential direction;

11: Shear strength: 150 MPa;

12: Bending strength: axial 350 MPa;

13: Compressive strength: axial 240 MPa;

14: Relative dielectric constant 2-3.2;

15: Dielectric loss factor 0.003-0.015;

16: Partial discharge ≤5;

17: Dielectric strength: axial 3~6kv/mm; radial 10~12kv/mm;

18: Lightning shock: 110KV;

19: Power frequency shock: 50KV;

20: Heat resistance class: B, F, H;

21: inner diameter > 5mm; outer diameter < 300mm; length < 2000mm.

The above data is only for reference, the casing parameters we produce are customized for each customer's needs!

Contact available at :

Jacky Shen - Sales manager

  • Description

Product Name: FRP Pipe Sizes

FRP pipe sizes vary significantly and are typically customized according to customer requirements. We can produce various sizes and shapes with the aim of meeting customer needs. Whether your project requires a large or small quantity, we can accommodate your requirements.

Size Varieties: The diameter of FRP pipes ranges from 1 inch to 48 inches. The wall thickness ranges from 1/8 inch to 1/2 inch, among others. Our pipes are available in lengths of 20 inches or 40 inches, depending on your choice.

Key Features:

The product sizes offer versatility, providing a range of diameter and wall thickness options. Additionally, FRP pipes exhibit excellent high strength and corrosion resistance. They are lightweight, offering lower weight compared to traditional metal pipes.
