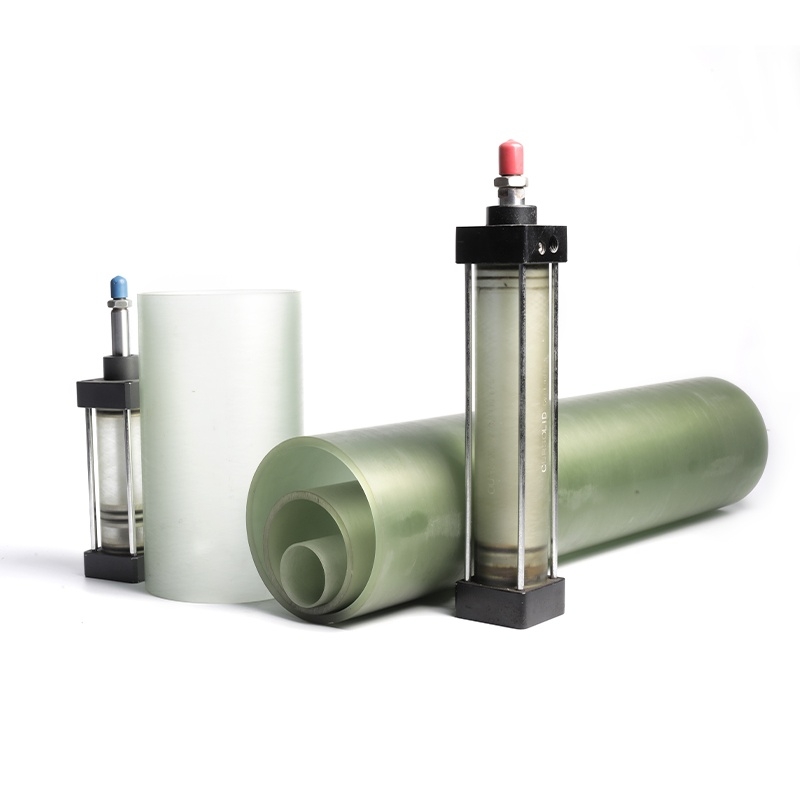

36" (0.914m) Antenna Housing

1: Winding angle, 45°~65° (winding angle can be adjusted according to different requirements to achieve better mechanical properties);

2: Fiber content (weight ratio), 70% to 75%;

3: Density, 2.00g/cm³;

4: Water absorption, less than 0.03%;

5: Axial thermal expansion coefficient, 1.8E-05 1/K;

6: Glass transition temperature, 110~120℃;

7: Chemical resistance Mineral oil: excellent;

8: Solvent and dilute acid: excellent;

9: Tensile elastic modulus, axial 14000 MPa;

10: Tensile strength: 280 MPa in the axial direction; 600 MPa in the circumferential direction;

11: Shear strength: 150 MPa;

12: Bending strength: axial 350 MPa;

13: Compressive strength: axial 240 MPa;

14: Relative dielectric constant 2-3.2;

15: Dielectric loss factor 0.003-0.015;

16: Partial discharge ≤5;

17: Dielectric strength: axial 3~6kv/mm; radial 10~12kv/mm;

18: Lightning shock: 110KV;

19: Power frequency shock: 50KV;

20: Heat resistance class: B, F, H;

21: inner diameter > 5mm; outer diameter < 300mm; length < 2000mm.

The above data is only for reference, the casing parameters we produce are customized for each customer's needs!

Contact available at :

Jacky Shen - Sales manager


  • Description

Product Description: The 36" (0.914m) Antenna Housing is designed to provide reliable protection and support for antennas in various applications. Its durable construction and weather-resistant properties make it an ideal solution for outdoor installations.

Performance: The antenna housing offers excellent performance in terms of protecting the antenna from environmental elements and ensuring signal reliability. It is designed to maintain signal integrity and minimize interference, making it suitable for demanding communication requirements.

Materials: Constructed from high-quality, weatherproof materials, the antenna housing is built to withstand harsh environmental conditions, including exposure to UV radiation, precipitation, and temperature fluctuations. This ensures long-term durability and reliable performance in outdoor settings.

Applications: The 36" (0.914m) Antenna Housing is suitable for a wide range of applications, including telecommunications, satellite communications, wireless networking, and IoT deployments. It is ideal for use in outdoor environments where antennas require protection and stability to maintain optimal performance.
